6RZ65

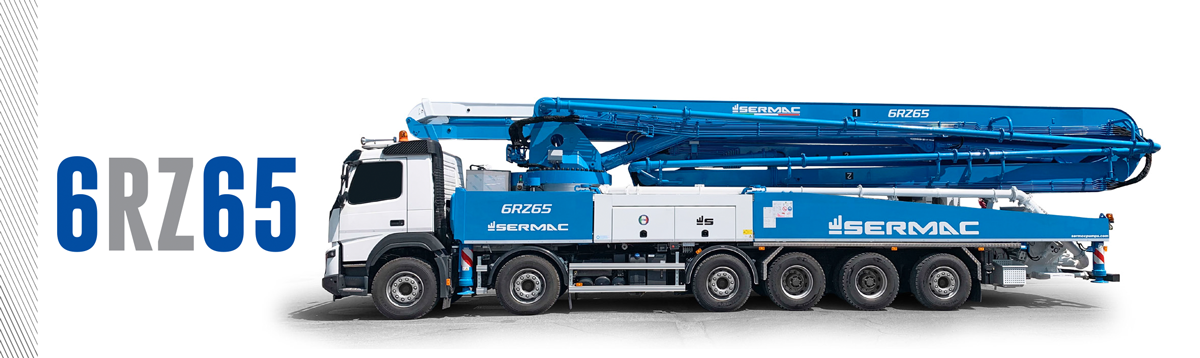

The SERMAC 6RZ65 concrete pump is designed with a versatile 6 section, “RZ” fold boom type made in high quality stainless steel S900. The 6RZ65 pump is ideal for medium-large applications, such as pumping at height on elevated roads and bridges or pumping at length in slabs, foundations and walls. A boom length of over 64 m and Ø 125mm pipeline makes the 6RZ65 perfect for jobs which require a larger flow of concrete. The X-type front outriggers and swing-out type rear outriggers allow the pump to be set-up in the most difficult spaces, and provide great stability in every pumping phase. Concrete pipeline supply in Twin-Wall straight pipes with extremely abrasion-resistant hardened inner liner. Bends made in Twin-Wall steel with chromium carbide inner. The 6RZ65 combines a perfect assembly on a 5 axle truck with a wheelbase of 6.350 mm. Excellent ratio between the total weight and 6-stage boom to achieve maximum efficiency: < 52 t (114640 lb) on a 5 axle vehicle. The pumping groups with open circuit hydraulic system S8 and G9 offers reliability and high performance; up to 195 m³/h concrete output at pressures of up to 85 bar: maximum efficiency and minimum wear.

6RZ65

6RZ65

Main features

  • Concrete pump produced, assembled and tested by SERMAC
  • Structural integrity verified with the Finite Element Method (FEM)
  • Pump frame designed for high torsion rigidity
  • Suitable for assembly on 5- or 6-axle trucks
  • Boom 6-stage, RZ-folding type
  • Pipeline diameter 125 mm (5”)
  • Main components sourced from genuine German and Italian manufacturers
  • Pumping unit with open hydraulic system and high manganese cast iron S-valve
  • Total mass on ground < 52 t (5 axle)

Standard dotation

  • X orientable-type front outriggers and swing-out type rear outriggers
  • Straight pipes made in twin-wall with highly abrasion resistant induction hardened inner liner. Elbows made in twin-wall with chromium carbide inner liner
  • Two sets of radio remote controls provided with 2-speed proportional boom control, automatic free frequency search, 8-position joysticks and concrete output control
  • Wear compensation system between wear plate and wear ring. Wear plate and wear ring with tungsten carbide inserts
  • Automatic hopper greasing unit with manual back-up system
  • Automatic oil lubrication for piston rams
  • Safety device on hopper door and hopper grate
  • Remote controlled electric vibrator on hopper grate
  • Hydraulic powered diaphragm water pump (75 l/min, 30 bar)
  • Water tank capacity 500 l
  • Work light on hopper
  • Metal bin for accessories beside hopper
  • Warning horn on the boom
  • Accessories for cleaning and maintenance
Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information.
