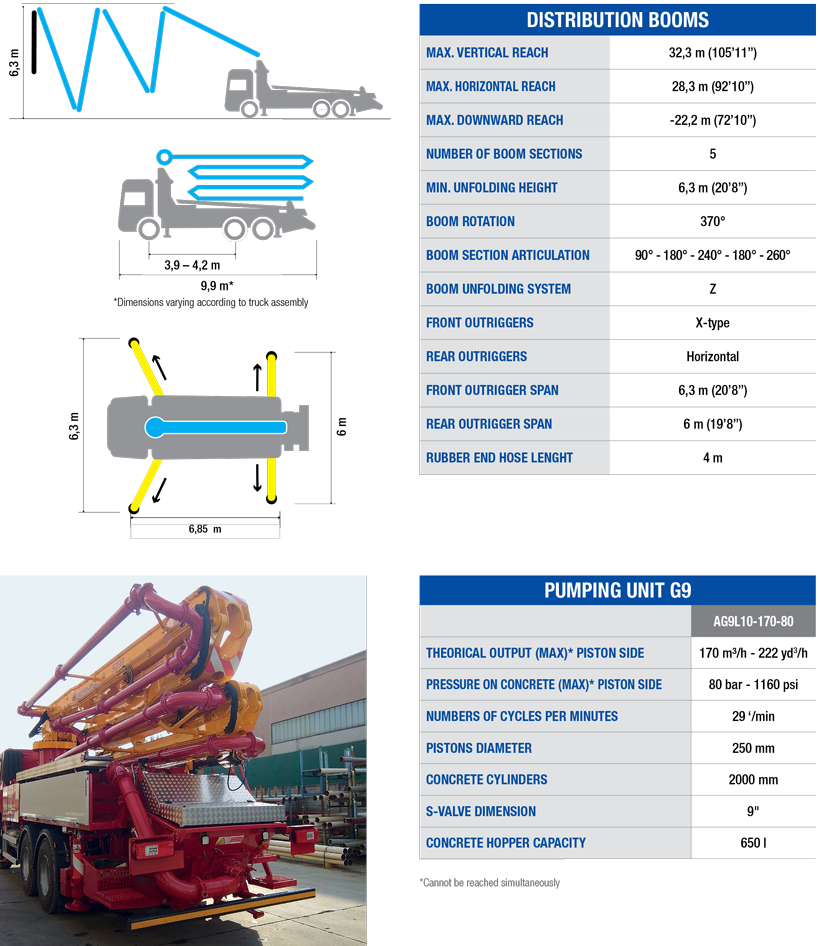

5Z33

The SERMAC 5Z33 concrete pump is designed with a versatile 5 section, “Z” fold boom. Thanks to a minimum boom opening height of just 6.3 m and pipeline of Ø 125 mm it provides the ideal solution for placing concrete in city centres or areas with restricted space, where large size concrete pumps could have difficulties in access and setting up. The 5Z33 is suited to medium-small jobsites, indoor and outdoor work on commercial and residential projects or any job that requires a limited set-up space. The pump can be easily maneuvered thanks to its assembly on a 3 axle truck with a wheelbase of 3,900 - 4,200 mm. The 5Z33 offers the most compact wheelbase pumps on the market (3,900 mm), combining boom agility with minimal setup space for the outriggers that other machines cannot reach. The pumping groups open circuit hydraulic system S8 and G9 offers reliability and high performance; from 130 m³/h to 158 m³/h concrete output at pressures of up to 85 bar.

5Z33

5Z33

Main features

  • Concrete pump produced, assembled and tested by SERMAC
  • Structural integrity verified with the Finite Element Method (FEM)
  • Pump frame designed for high torsion rigidity
  • Suitable for assembly on 3-axle trucks
  • Boom 5-stage, Z-folding type
  • Pipeline diameter 125 mm (5”)
  • Main components sourced from genuine German and Italian manufacturers
  • Pumping unit with open hydraulic system and high manganese cast iron S-valve
  • Ideal for working in tight spaces
  • Total mass on ground < 26 t

Standard dotation

  • X-type front outriggers and horizontal type rear outriggers
  • Straight pipes made in twin-wall with highly abrasion resistant induction hardened inner liner. Elbows made in twin-wall with chromium carbide inner liner
  • Two sets of radio remote controls provided with 2-speed proportional boom control, automatic free frequency search, 8-position joysticks and concrete output control
  • Wear compensation system between wear plate and wear ring. Wear plate and wear ring with tungsten carbide inserts.
  • Automatic hopper greasing unit with manual back-up system
  • Automatic oil lubrication for piston rams
  • Safety device on hopper door and hopper grate
  • Remote controlled electric vibrator on hopper grate
  • Hydraulic powered diaphragm water pump (75 l/min, 30 bar)
  • Water tank capacity 425 l
  • Work light on hopper
  • Metal bin for accessories beside hopper
  • Warning horn on the boom
  • Accessories for cleaning and maintenance
Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information.
